Description

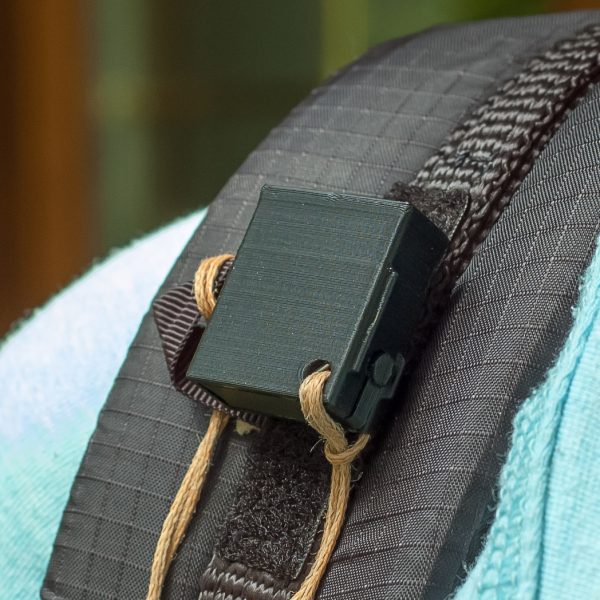

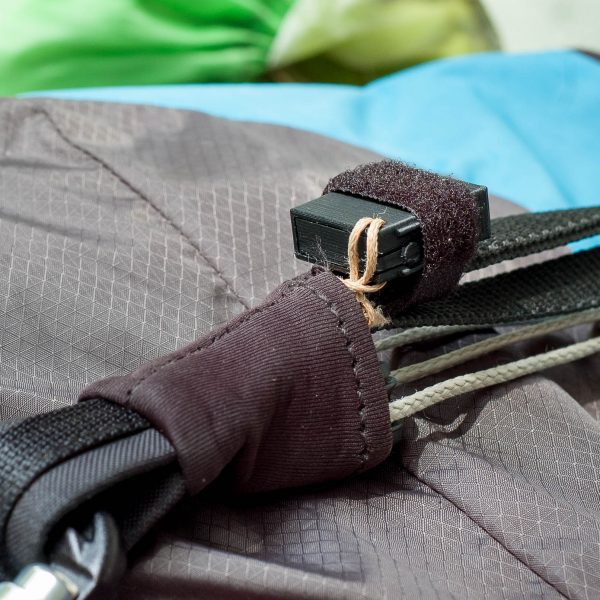

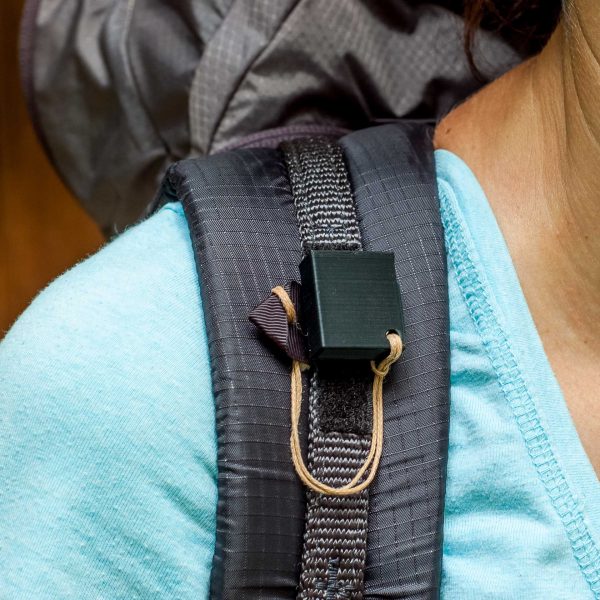

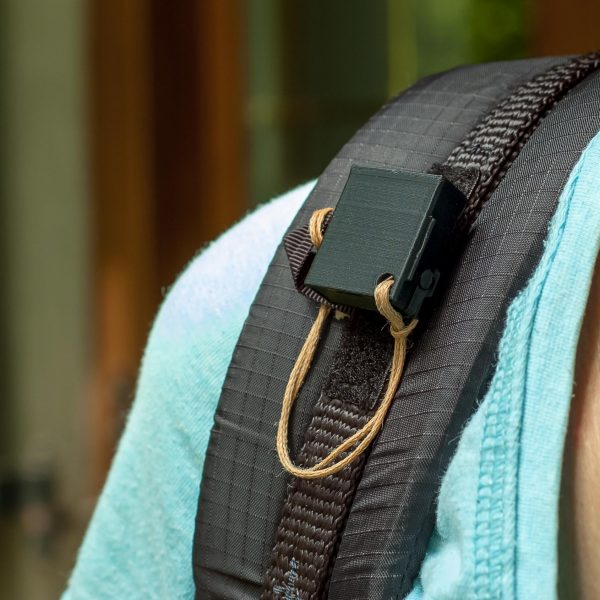

Acoustic variometer was designed as a reserve device. It is the smallest size
and minimal functionality – acoustic indication of climb. Due to its size it

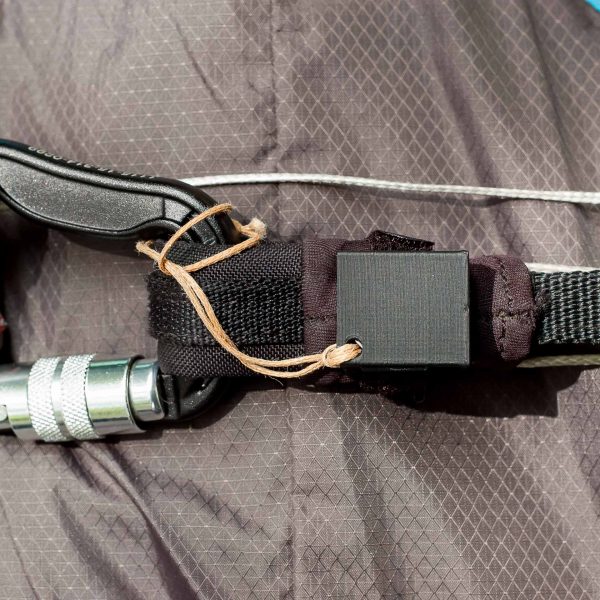

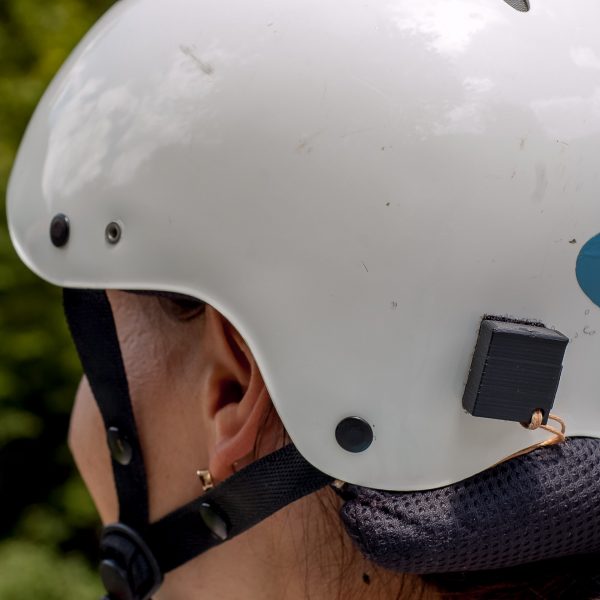

is easily integrated into the equipment.
Features

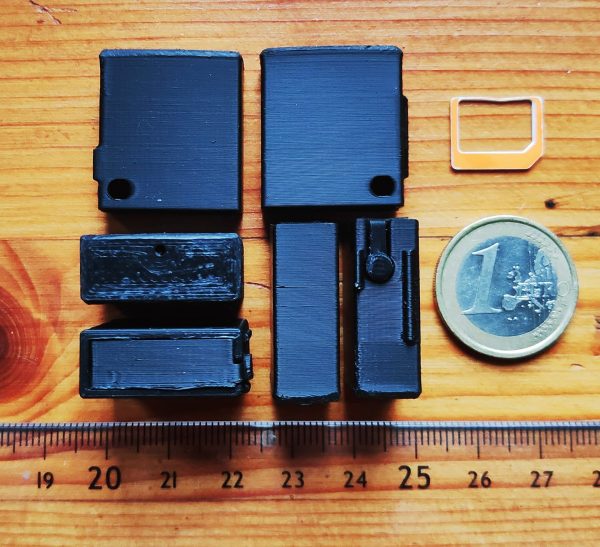

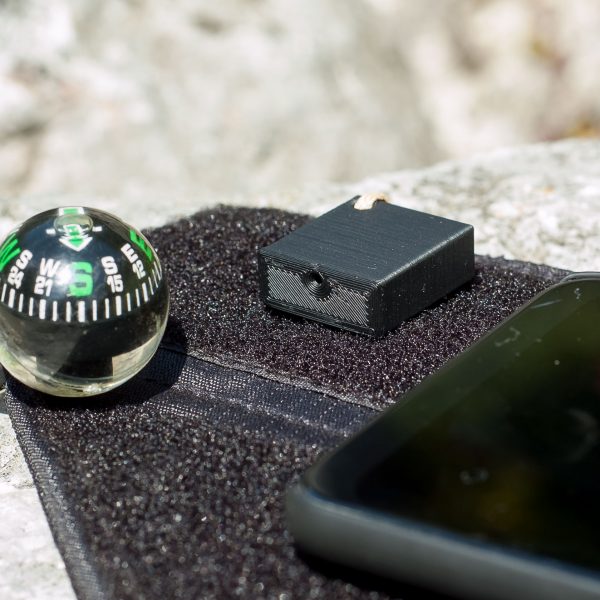

- Little size – 3x2x1 cm
- Lightness weight – 8 g
- Long working time – more than 100 hours with good quality CR2032 battery
-
Low delay of reaction to climb – less 0.5 second for +2 m/s, less 1 second
for +0.2 m/s - Levels of volume – 3 levels
- Adjustable lift threshold – +20 cm/s, +30 cm/s, +40 cm/s, +50 cm/s
-
Adjustable threshold for reduction – off, -1 m/s, -1.5 m/s, -2 m/s, -2.5
m/s, -3 m/s, -3.5 m/s - Auto power off timer – 8 hours
- Climb sensitivity – ±20 cm
- One button control – easy to use
-
Sound indication of battery discharge level – if the device turned on, the
device emits a series of short beeps, the number of which can be used to
roughly judge the size of the remaining battery capacity - “Zeroes” detector – on/off
Package
The kit includes one variometer and mounting sticky tape separately.
Sample
Real climb with “Zeroes” and lift threshold +50 cm/s. Maximum of lift +5 m/s
Manual
Download PDF:
