Teaching a LoRa vario to hear ADS-L, and finding the time to do it

In July I wrote about where the line actually is between FLARM, FANET and ADS-L. I ended with a promise: ADS-L goes on as soon as it is worth switching on. This month I found out what that takes.

My vario talks FANET over LoRa, a long-range, low-power radio technique. Teaching it to also hear ADS-L turned out not to be a radio problem. The radio took a week. What decided whether any of it worked was a clock, and my device does not have one.

So this is a lab notebook. Two boards on a desk, a metre apart. One transmits, the other only receives.

What ADS-L is, and why a paraglider pilot should care

ADS-L is Europe’s open system for light aircraft to broadcast their position so that others can see them. EASA, the EU aviation safety agency, publishes the specification. Anyone may implement it, and there is no licence to negotiate. FLARM, the collision warning system that gliders carry, is the opposite on exactly that point. The part of ADS-L that concerns me is ADS-L 4 SRD860, currently Issue 2.

Why should a paraglider pilot care? Because of who else is in the air. FANET shows you other free-flight pilots. It shows you nothing about the sailplane heading into your thermal, because gliders do not speak FANET. ADS-L is the language gliders are being pointed towards.

It is also closer than it looks. That was the point of the July article. Open Glider Network (OGN) stations, ground receivers spread across Europe, already decode ADS-L. The PowerFLARM modules that gliders already carry are getting ADS-L transmission as a paid extension. And ADS-L runs on 868 MHz, the band my radio already uses. So this is firmware work, not a new board.

Everything in ADS-L depends on the start of the second

Here is the ADS-L radio scheme in short.

There are two channels, 868.2 and 868.4 MHz, and transmissions alternate between them. Aircraft transmit only in a fixed time window, from 450 to 1000 ms after the start of each UTC second. UTC is the world’s reference time, and a UTC second is one whole second on that clock. The standard calls this window the Direct slot (section C.5). A slot is simply a reserved time window. The standard also says that no position may go on the air more than 500 ms old (G.1.16).

For a receiver, this is useful. All the traffic arrives in a little over half of each second. The rest of the second is empty. If you listen during the busy half, you hear everyone. If you listen at the wrong moment, you hear almost nobody, however long you listen.

The standard is direct about where a transmitter gets its time: “an accurate time base, e.g. obtained from a GNSS source or a network”. GNSS is satellite navigation, such as GPS or Galileo. Everyone uses it, because a GNSS receiver gives out a pulse every second that is accurate to tens of nanoseconds.

So a receiver needs one number: when the current UTC second began. It needs it much more precisely than 550 ms, the length of the slot.

My device has no GNSS, and that is deliberate

The FANET Vario has no satellite receiver. The position it broadcasts comes over Bluetooth from the phone in your harness. That is the founding decision of the product line. A GNSS chip costs milliamps, grams and euros, only to duplicate a receiver the pilot already carries.

But it means the device has no source of accurate time. Without it, a receiver can only sweep: it moves its listening window across the second, so that it at least hits the busy half now and then. Spending a third of every second this way catches about 15 % of the traffic. The rest arrives while the receiver is listening to the empty half.

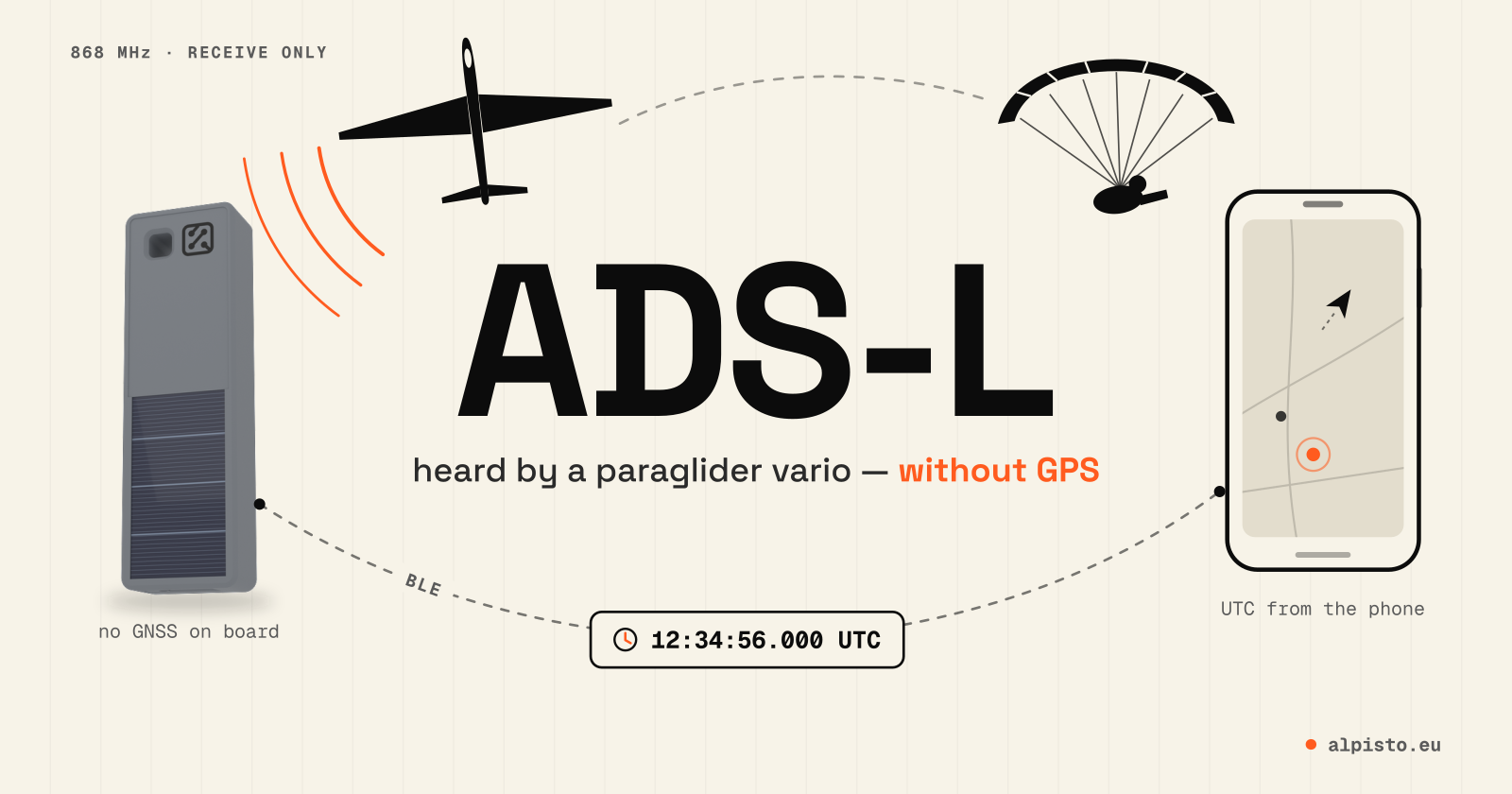

The fix is almost embarrassingly obvious. The phone knows UTC. The phone is already connected. So let the phone send the time along with the position.

The question then is this. Bluetooth Low Energy (BLE) is the low-power Bluetooth that phones use to talk to small devices. Can the start of a second travel over a BLE link accurately enough to place a 550 ms window?

The short answer

Yes, with room to spare.

I synchronised the device from a phone running my app. The device’s idea of UTC landed within 2 ms of the phone’s. It was 0.0 ms off right after syncing, and 1.9 ms off a minute later, with no drift correction at all. In a 550 ms window, that error loses 0.4 % of the traffic. The worst case I could construct was a slow link and ten minutes without a resync. Even then the error stays under 80 ms, which loses 15 % of frames.

On the bench, the share of transmitted frames the receiver caught went from 15.6 % to between 50 and 100 %, for the same share of listening time.

The rest of this article is how I measured those numbers, and the two ways I fooled myself first.

One radio, two protocols

First, a correction. I have said before, carelessly, that “the chip is either a LoRa receiver or a GFSK receiver, never both”. LoRa and GFSK are two different ways of putting data on a radio wave. FANET uses LoRa, ADS-L uses GFSK. My sentence is true of my hardware, but not of radios in general.

My radio chip, the SX1262, has a single receive path: one route from the antenna to one demodulator, the part that turns the signal back into bits. So it can receive only one packet type at a time. Chips and modules with two receive paths do exist, and they really do hear both. They cost more money, more board space and more current. That is why they are not in a solar instrument that lives off a small panel.

So on my device FANET and ADS-L take turns, and taking turns costs packets from both. If “FANET + ADS-L” ever appears on a product page, that sentence will go next to it.

To manage the turns, the radio code got a scheduler: a table of time slots and a timer. Switching between protocols takes time, so first I measured 73 switches.

Two switches a second take about 22 ms of every second. During that time the radio listens to neither protocol. The switch time repeats to within tens of microseconds, which matters later.

I made the cycle deliberately not a multiple of one second: 900 ms of FANET, then 400 ms of ADS-L. That way the ADS-L window drifts across the second instead of sitting in the same part of it forever. With no clock, sweeping is the honest strategy.

It also sets a hard limit. Spending 31 % of every second on ADS-L caught 28 frames out of 180, which is 15.6 %. Listening more would not fix that. The problem was never how much you listen. It is when you listen.

How good a clock channel is Bluetooth?

Before synchronising anything, I measured the link itself. I added a ping command. The host, a laptop or a phone, sends a command code and a sequence number. The device replies with two timestamps from its own clock: the moment it first touched the request and the moment it last touched it. The difference between them is the device’s own processing time, and the host subtracts it. This is the same maths that NTP, the protocol computers use to set their clocks over the internet, is built on:

RTT_net = (t_recv − t_send) − (t_dev_tx − t_dev_rx)
θ       = ((t_dev_rx − t_send) + (t_dev_tx − t_recv)) / 2

RTT_net is the round-trip time of the link alone: how long a message takes to reach the device and come back, minus the device’s processing. θ (theta) is the clock offset: the device’s clock minus the host’s. I take θ from the fastest exchanges in a run. When a link is not equally fast in both directions, the fastest exchanges are the least wrong.

Same firmware, same command, four transports. The bars measure the link, not the device.

One simple rule explains the whole chart: the round trip takes about twice the connection interval. The connection interval is how often two BLE devices agree to exchange data. Force the link to a 7.5 ms interval, and the median round trip drops to 17.9 ms. Let the firmware ask for its preferred 30–50 ms, and it jumps back to about 70 ms. A phone follows the same rule. Asking Android for a high-priority connection cut the median from 83.6 to 40.5 ms.

Two numbers did not change. Processing on the device took 122 µs median and 336 µs at worst, which is invisible next to the link. And nothing was lost: about 5800 pings on the bench and 858 more from the phone, and not one was dropped. Bluetooth here does not lose messages. It is just late, and late by uneven amounts.

Then the crystals. Each device keeps time with a small quartz crystal, and no crystal is exact. The error is measured in ppm, parts per million. One of my devices runs 26 to 29 ppm slow, the other 73 to 82 ppm fast. That is 105 ppm apart, which is ordinary for a 32.768 kHz watch crystal. On the worse unit it adds up to 5 ms a minute.

One trap cost me an afternoon. If you estimate that drift rate from a short burst of pings, you get garbage. The error in θ is not smooth random noise. It comes in steps set by the connection interval, so a least-squares line fitted to a short burst describes those steps, not the drift. One burst gave −896 ppm. The device dutifully corrected for it and drifted 134 ms in 150 seconds, far worse than no correction at all. The fix is a sanity check: fit only runs of 30 seconds or longer, and reject any result beyond ±200 ppm.

So the total error has three parts:

The receive window is exactly as long as the slot, so there is no spare margin to hide in. An error of e loses e/550 of the traffic.

So is Bluetooth good enough as a clock channel? Yes. On the slow link, with no resync for ten minutes, the three parts add up to under 80 ms. That costs at most 15 % of frames. On a fast link with a resync once a minute, the total is about 10 ms, or 2 %.

A clock inside the device

The device keeps two numbers: an offset and a rate. Its uptime is its own counter of time since it was switched on. The host tells it: “at your uptime X, my UTC was Y”. The device stores the difference, which is the offset. It also stores how many ppm fast its own clock runs, which is the rate. When asked for the time, it answers:

$\text{UTC}(t) = t + \text{offset} - \text{rate}\cdot(t - t_{\text{sync}})$

All of this is in microseconds, stored as 64-bit numbers. That is needed because the uptime stamps sent over the link are only the lower 32 bits of a counter, and that counter wraps around every 71.6 minutes. The device restores each full value by picking the candidate nearest to the current time.

I measured the residual: the device’s estimate of UTC minus the host’s, at the same instant.

Unit 1 drifting +13 ms in 155 seconds is about +85 ppm. It is the same unit that measured +73 and +82 ppm in the ping runs. Different method, same crystal, same answer.

Two mistakes in method turned up on the way. Both produce beautiful wrong numbers.

The first: a residual measured against an old θ means nothing. The conversion from device uptime to host time drifts at exactly the same rate as the device’s clock. The two cancel out, and the measurement shows the correction itself instead of its result. So every drift check starts with fresh pings.

The second: “now”, used to work out when the window opens, must be read after the radio switch, not before. I was reading it before. So the 14 ms switch back was taken out of the deadline, the window opened 13 ms late, and the start of the Direct slot was lost. I only caught it because the first aligned run measured 531 ms of reception instead of 551.

One second of radio time, aligned. The dark slivers are the switches.

With that fixed, the window now opens 9 ms early. The switch takes 8.1 to 8.2 ms, and the receiver must already be listening at 450 ms. The device gets 550.9 ms of real reception per window, once every 1000.2 ms. The other 440-odd ms of each second go back to FANET.

What the alignment bought

Same bench, same transmitter: a development kit sending one frame a second at −9 dBm, on 868.2 MHz only. Each run is 180 frames.

Grey is how much of each second the radio spent on ADS-L; orange is what came back for it.

From A to C the catch rate goes from 15.6 % to 100 %, for the same order of listening time. Not one frame was dropped in any run. A CRC is a checksum that detects damaged packets, and not one CRC check failed either.

B is half of C for a simple reason. Half of B’s windows listen on 868.4 MHz, but my bench transmitter only uses 868.2. Real aircraft alternate channels frame by frame. So in the air, a receiver that alternates and a receiver that stays on one channel both catch about half. C’s 100 % is a bench artefact. B’s 50 % or so is the number to expect.

D is the interesting one. It spends half as much time on ADS-L and gets the same catch rate. The whole gap between its windows goes back to FANET.

Then the test that matters: a phone instead of a laptop, my app instead of a Python script, and Android’s scheduler competing for every packet. The phone synchronised the device to 0.0 ms residual straight away, and 1.9 ms after a minute, with no rate correction. Aligned windows opened about 0.6 times per second. And the transmitter’s aircraft appeared on the map in the app. That position was decoded from a frame a vario caught in a 550 ms window, aimed with a clock it got over Bluetooth.

The catch rate there was about 26 %, which is exactly as expected. Listening every other second halves it. Alternating channels halves it again, because the transmitter only ever uses one of the two.

The radio work was a week of opcodes. The clock work was three days of not believing the first number I got.

What is next, and what I have not solved

Transmitting is the next step. I am not closing that door. What blocked it was never the radio. It was the lack of a UTC second I would stand behind, and that is exactly what this month produced.

The rest of that question is about regulation, not engineering. ADS-L itself is open: unlike FLARM, there is no licence to negotiate, and that point is settled. But a device sold in the EU that transmits on 868 MHz has to meet the ETSI requirements under the Radio Equipment Directive. ETSI is the European body that writes these radio standards. The device must keep to duty cycle limits, that is, limits on how much of the time it may transmit, and must share the band politely. And it must carry a declaration of conformity with my name on it. I am an engineer, not a lawyer.

Field trials come first anyway. Everything above is one cooperative transmitter on a desk. Real traffic arrives at the noise floor, barely above the background noise, from aircraft that each have their own idea of when the second starts. Until I have flown with it, the honest claim is “it decodes ADS-L on the bench”, not “it sees gliders”.

Channel switching should also get smarter. Two windows inside one second, from 450 to 725 ms and from 725 to 1000 ms, would cover both channels every second instead of every other second. The cost is two extra switches per second, about 22 ms per second.

And FANET is next in line for the same treatment. For ADS-L I built a command channel between the phone and the device: typed commands, typed notifications, and a reserved byte for the regional profile. That is the shape the FANET side should have had all along.

For the curious: what the radio had to be talked into

You do not need this section to follow the rest of the article.

ADS-L’s M-band uses plain 2-GFSK, which the SX1262 handles perfectly well. But three details are not built into the chip.

Manchester coding. This scheme sends every bit as a pair of opposite bits. The older SX1276 chip did it in hardware. The SX1262 does not, so it is done in software, and every buffer doubles in size.

The preamble. This is the fixed pattern at the start of a packet that tells the receiver a packet is coming. The ADS-L preamble ends in 1001 1001, and the chip’s preamble detector, which looks for 0x55/0xAA, will never match it. A sync word is the pattern the chip waits for before it starts recording a packet. The trick is to make that last preamble byte the first byte of a five-byte sync word, 99 95 A6 9A 65. Its other four bytes are 0x724B after Manchester coding.

The checksum. ADS-L uses a CRC-24 on the Mode-S polynomial. It sits inside the Manchester-coded data, together with the length field, where the chip’s packet parser can reach neither of them. So the hardware CRC is off, the chip receives a fixed 60-byte block, and software cuts it down to size.

The payload is scrambled with XXTEA. That sounds like security, but it is not. At key index 0 the key is all zeros, and the algorithm is printed in the standard. It is obfuscation: a damaged packet comes out obviously wrong.

Then the software. There are three layers of it, and each one is built only for LoRa. Zephyr is the operating system the firmware runs on. Its lora_modem_config has no GFSK field at all. The driver below it hardcodes MODEM_LORA in eight places and restarts reception by itself. The Semtech layer below that does have a GFSK path, but it is set up for LoRaWAN: the wrong Gaussian filter, a three-byte sync word, whitening on, and the wrong CRC. So I drove the chip with my own commands. They go over SPI, the wired link between the processor and the radio chip, which the firmware already used for FANET’s sync word.

The first frame from end to end was undramatic in the best way. 15 blocks in, 15 decoded, zero CRC failures, zero Manchester errors, and a signal strength (RSSI) of around −56 dBm. Frames reach the phone raw, with the CRC already checked. Descrambling and parsing happen in my app, where protocol knowledge can be updated in an afternoon.

Where this runs

The bench work ran on my FANET bridge boards and a Nordic dev kit. They have the same nRF52832 processor and SX1262 radio as the FANET Vario. Its firmware now builds with all of this inside it, switched off. If you want the part I actually ship today, a solar FANET beacon and barometric vario, it is on sale.

If you work with ADS-L, OGN or M-band receivers and something above looks wrong, especially the reading of the Direct slot or the clock budget, I would genuinely like to know: [email protected].
